Bead Breaker

[new44]

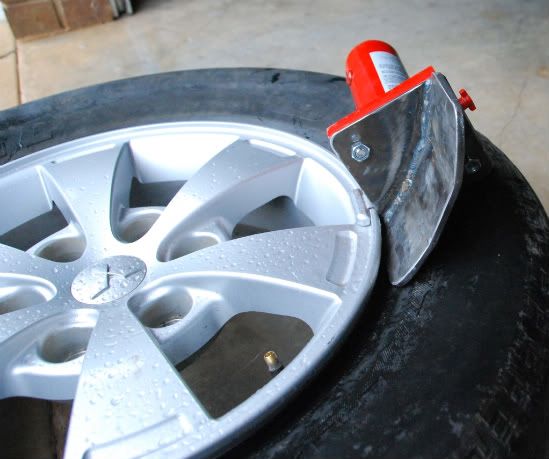

Thought some may be interested in my bead breaker.
Similar versions have been around for ages.
Works very well.
Cheers

[fridgie]

That some nice work there Someone has actuall found a use for the bottle jack!!


I can hear a group buy calling.....

[ultimate]

Nice work. I could use one them....I don't really have a good track record with tyres on newtriton trips

[boycee]

Nice to see someone thinking outside the square.

[Diddy]

We used to use a big fat chisel n hammer but that's a great idea with the jack

[Snooozy]

Nice to see someone thinking outside the square.

or thinking outside the spare

[Stevo8]

If you carry a high lift jack they are perfect for breaking beads to. Just jack up with the base plate over the edge of the bead.

[ultimate]

or thinking outside the spare

Nice work snooozy

[salt36]

^^^^^^^^ X2

[greybeard]

nice
I can see some play time with a FBH and the welder coming up
what size is the curved plate that breaks the actual bead?

[new44]

what size is the curved plate that breaks the actual bead

I made the unit from scrap steel out of my shed.

Curved piece was made out of flat plate 50mm x 6mm. ( 3 pieces of 82mm long welded up on their edge)
Base plate made from flat plate 100mm x 3mm (cut square 100mm x 100mm).
Extra hole was drilled into the jack base plate.

Cheers

[greybeard]

thanks for that.
now i just need to decide between the FBH or the weld the pieces construction method
